The Ultimate addition to your Doorbird Doorstation
Doorbird now provides both the flexibility of an app-based video intercom system and the reliability of a wall-mounted station

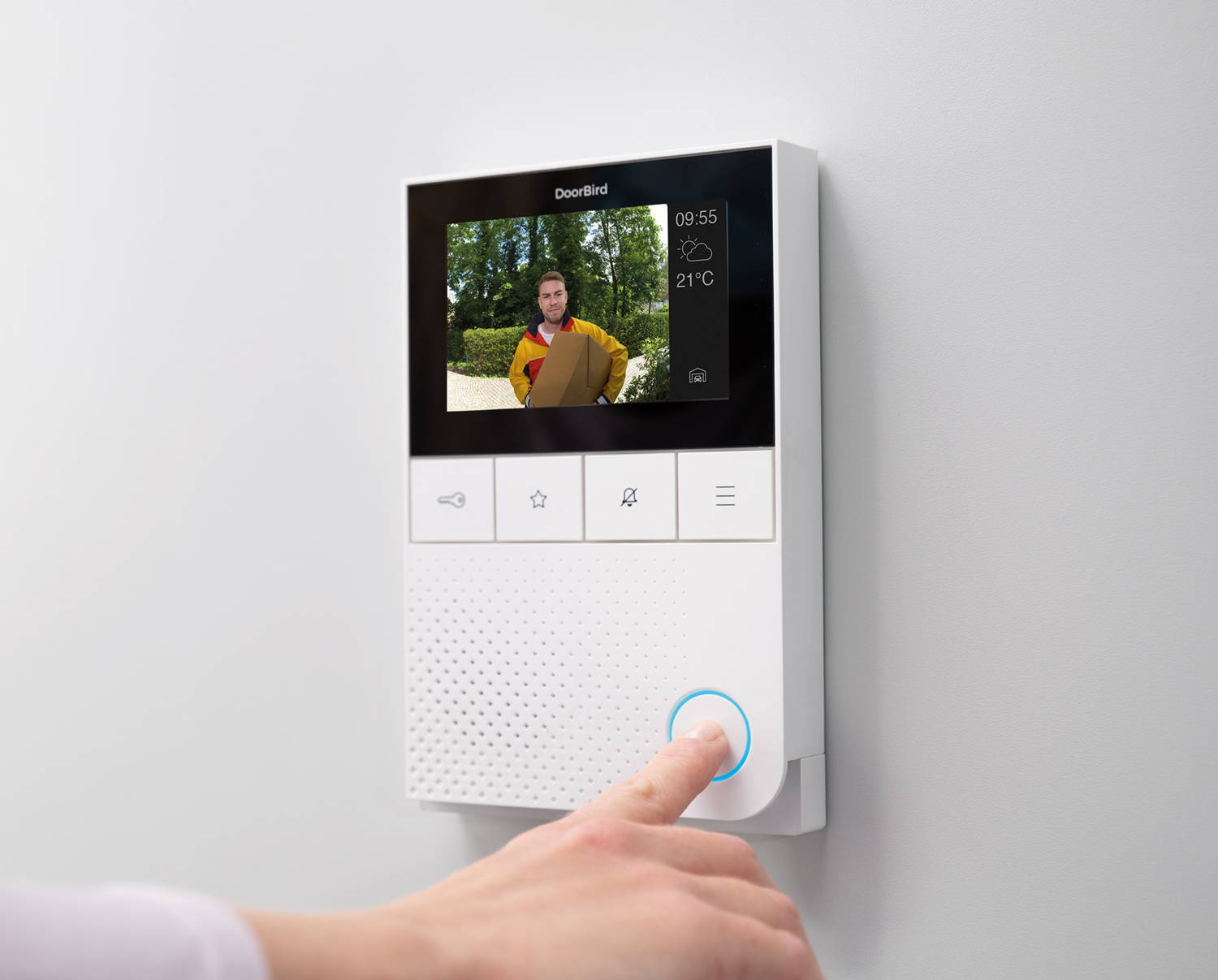

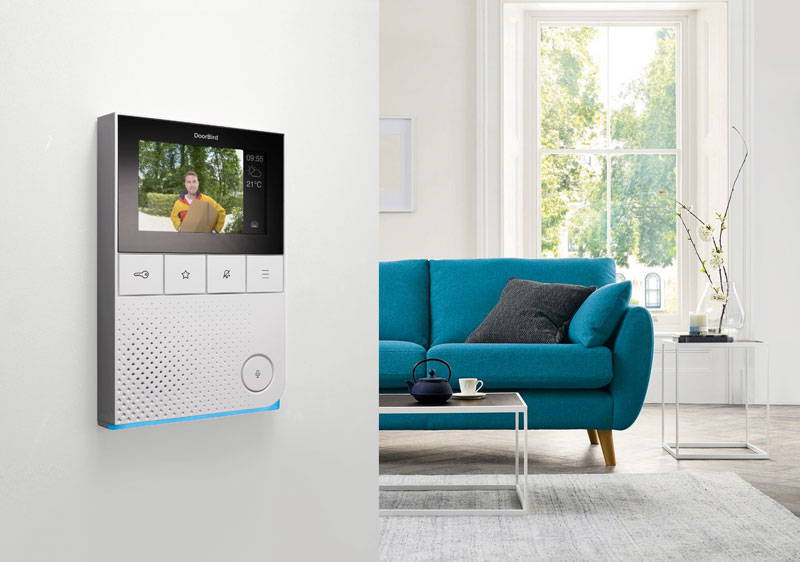

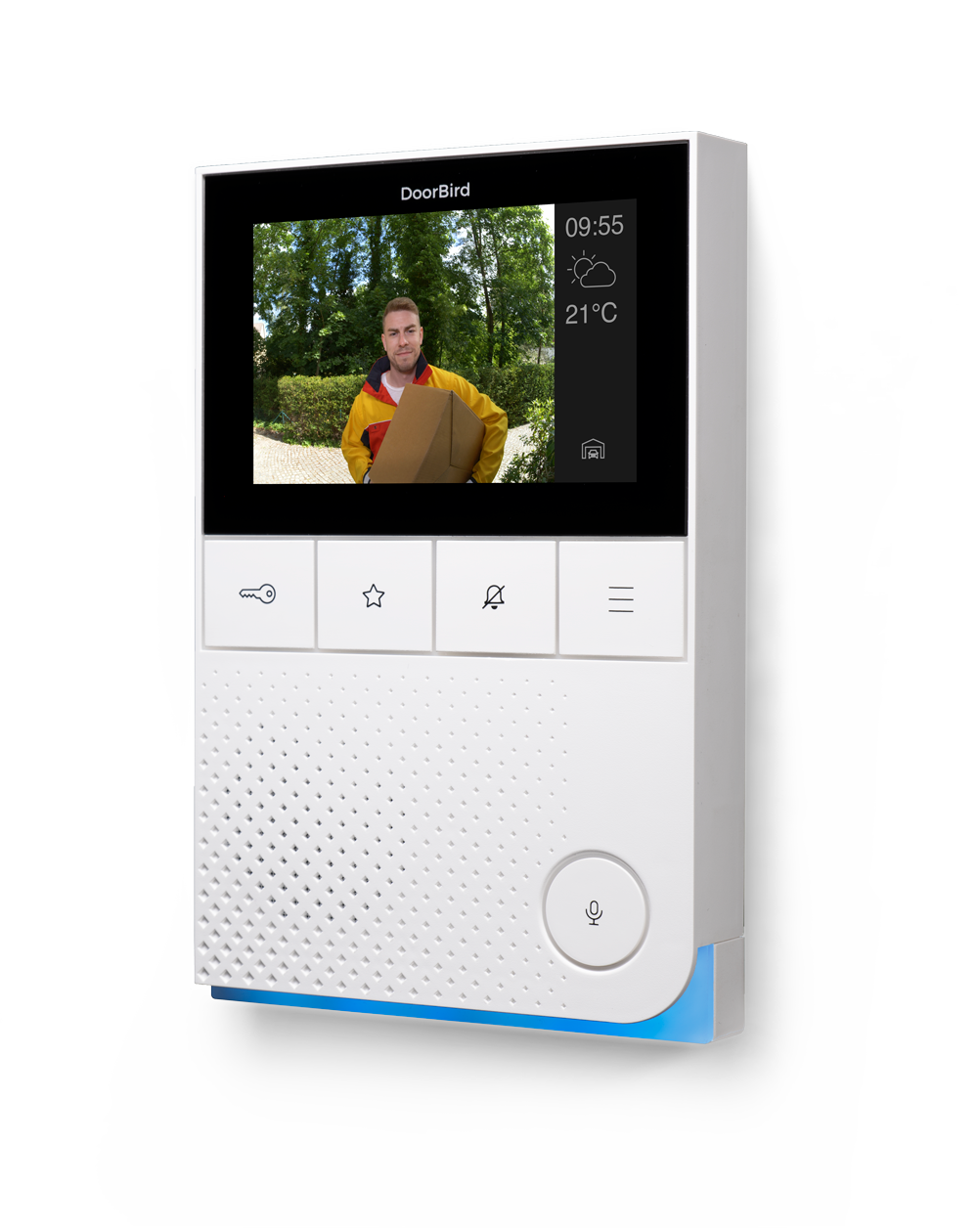

Designed and built in Berlin, Germany, and made with corrosion-resistant precious metals, the device features a customizable high-resolution touchscreen display made with scratch-resistant safety glass. It also includes buttons so you can access the more common functions quickly.
At the bottom of the device, there is an LCD light that makes it easy to find in the dark. The light’s color is customizable and you can choose between four different color options. The A1101 is also flexible in how it connects. You can connect it to the network using your home’s WiFi or a hardwired connection. If you don’t want to mount the unit to the wall, the A1101 has a table mount that is sold separately.
The A1101 can be paired with all of DoorBird’s single-family residence and multi-tenant models. An unlimited number of indoor stations can be added to a DoorBird system, meaning you can have one in every room, instead of just right by the door, if you like. The settings are all controlled using the DoorBird app.
For those looking to expand the Access Control functionality of their home, the Doorbird A1101 offers 3 x extra Door control relays. These can be used to add the Front door, Garage door, Side gate, Back door, or any other entry point to the home that can be electronically controlled. Essentially the A1101 Indoor station has an A1081 Multi IO Door Controller built in, massively adding to its already great value.
It is as simple as that...
Access Control
• Door Opener and elevator control
Room to Room
• Room to room communication, when using multiple Indoor Stations
WiFi enabled
• Works within a WiFi network,no LAN cable needed
Automation & Control
• Home and building automation control (IP, TCP, HTTPS, relays etc.)
Remote Configuration
• Configurable via the DoorBird App worldwide
Intuitive User Interface
• 4“ True Color Touch Display
• Scratch-resistant tempered Gorilla® glass
Two-way Audio Communication
• HD Audio, up to 102 dB
• More than 50 doorbell sounds available
Easy self-install
• Quick installation viaQR code scan
3 x freely configurablebi-stable switching relay
Free Visitor History
• Store still images for free.Optional video recordingavailable.
Unlimited Range
• Supports WiFi, Ethernet, PoE
• Support for multiple DoorBird
IP Video Door Stations
Hard Button Shortcuts
• 5 hardware buttons for main functions
• Configurable RGB LED status bar
White Edition
Black Edition
General
Mounting Type
Surface-mounted, Table Stand ”A8003“ sold separately
Power supply
15 V DC (max. 15 W) or Power over Ethernet(PoE 802.3af Mode-A)
Weight
336 g
Connectors
• LAN/PoE (T+, T-, R+, R-)
• Digital input (0 V, 0 A (NO)) #1,
e.g. for storey-call button
• Digital input (0 V, 0 A (NO)) #2,
e.g. for second storey-call button
• Bi-stable latching relay #1,
max. 24 V DC / AC, 1 Ampere,
e.g. for electric door opener or
elevator
• Bi-stable latching relay # 2,
max. 24 V DC / AC, 1 Ampere,
e.g. for electric door opener or elevator
• Bi-stable latching relay # 3,
max. 24 V DC / AC, 1 Ampere,
e.g. for electric door opener or elevator
• 15 - 48 V DC input (+, -), max. 15 W
Power Consumption
5 W
Approvals
CE, FCC, IC, RoHS, IP50
Dimensions
179.5 x 115 x 25 mm (H x W x D)
7.07 x 4.53 x 0.98 in (H x W x D)
Operation Conditions
0 to +55°C / 32 to 131°F
Humidity 0 % to 85 % (non condensing)
Scope of delivery
1x IP Video Indoor Station
1x Mounting bracket
1x RJ45 Adapter
1x Power supply unit (main adaptor)
with four country-specific adaptors
(110 - 240 V AC to 15 V DC)
1x Quickstart guide with Digital Passport
1x Installation manual
1x Small parts
Warranty
2 Years see doorbird.com/warranty
Display
Dimensions
4“ True Color LCD
Touch
Yes, capacitive
Resolution
800 x 480 px
IPS
Yes
Audio
Audio components
Speaker and microphone, noise reduction andecho cancellation (ANR, AEC)
Audio streaming
Two-way
Network
Ethernet
PoE 802.3af Mode-A, 10/100 Base-T
WiFi
802.11 b/g/n 2.4 GHz
Integrated Wireless Modules
WiFi
802.11 b/g/n 2.4 GHz
Current System Requirements
System requirements
Mobile device: Newest iOS on
iPhone/iPad, newest Android on
Smartphone/Tablet
Internet: High-Speed Landline Broadband
Internet connection, DSL, cable or fiber optic,
no socks or proxy server
Network: Ethernet Network, with DHCP
Supported Door Stations
Any DoorBird IP Video Door Station
Optional Accessories
Sold separately
Datasheet
Instruction Manual
User Manual
Drilling Template
A1101 IP Video Indoor Station
A1101 IP Video Indoor Station Unboxing (EN)
How to Set Up an IP Video Indoor Station
IP Video Indoor Station: User Settings
How to Add an IP Video Indoor Station
How to Set Up Room to Room
