Market leading Video IP Intercom and Doorbell

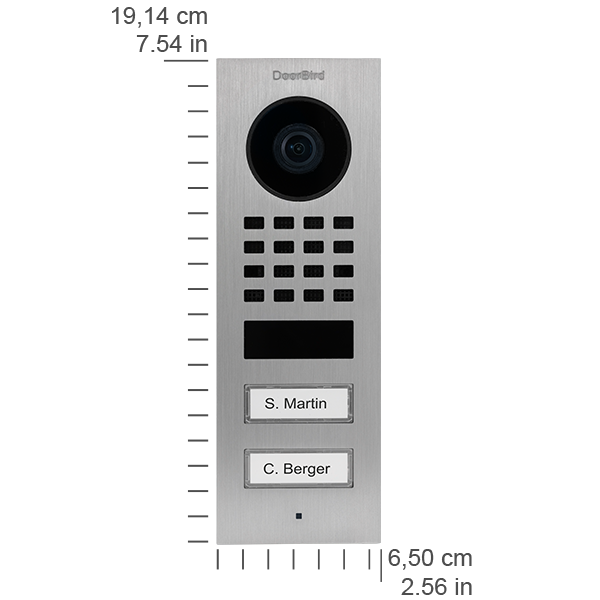

The D1102V model is brand new and sits in the middle of the Doorbird range, has a beautiful stainless steel fascia in a range of finishes, all the essential Doorbird functionality, 1 x door release relay’s, and newly introduced Bluetooth for simple access control.
It is suited to a dual residence or commercial property with 2 call buttons.
This model is the Surface Mount version which means you attach the Doorbird and it's backbox to a flat surface and it sits proud.
Multiple Fascia's available - V2A Stainless Steel is IP65, V4A in Stainless Steel is IP65 with chrome-nickel steel with molybdenum additive for harsh conditions and is Salt-Water resistant.
You can see your visitors, speak with them and open the door by smartphone or tablet – from anywhere in the world. DoorBird combines innovative technology with elegant design. A smart solution – Designed and manufactured in Germany.
High tech makes life easier
With DoorBird you will not miss any more deliveries – because you will be informed right away when the postman rings.
Security comes first
Do not compromise on safety. Most burglaries happen during the day when no one is at home. With the DoorBird you can respond to visitors from anywhere in the world.
Nothing escapes the motion sensor
Great all-round visibility: Thanks to the integrated high-end motion sensor you always know what happens in front of your home. The 180° infrared motion sensor can, if desired, set off an alarm, or notify you – without the visitor having rung the doorbell.
It is as simple as that...
Bluetooth Low Energy (BLE)
• For access control,compatible externalsensors and smart locks. (future firmware update)
HDTV Video
• Full HD 1080P
• Ultra wide-angle,hemispheric lens, 200°
WiFi enabled
• Works within a WiFi network,no LAN cable needed
Video and audio call
• On smartphones, tablets(iOS, Android), IP andlandline phones (SIP)
Light Sensor
• For night vision mode
Night Vision
• With 12 Infrared LEDs
Motion Sensor with 4D Technology
• Distance up to 6 madjustable via App(interval: 1 m)
Easy self-install
• Quick installation viaQR code scan
One freely configurablebi-stable switching relay
Free Visitor History
• Store still images for free.Optional video recordingavailable.
Geofencing
• Automatic door and gateopening when returninghome
Burglary Prevention
• Prevents more break-insthan an alarm system
Automatic Door Buzzer
• For use in medical officesand office environments
Individual Action Schedules eg:
• 4D motion sensor switcheson external lamp between9 pm and 6 am
Smart Home & NVR
• Real-time audio / videocommunication, optimizedfor mobile devices viaWiFi, 3G, 4G, 5G
Open API
• Local interface forintegration with third-partysystems and SIP
Noise Reduction
• Noise reduction and echo cancellation (AEC, ANR)
Smart TransmissionMode (STM)
• Real-time audio / videocommunication, optimizedfor mobile devices viaWiFi, 3G, 4G, 5G
To find out more about the different types of finishes on DoorBird's, see our page here
Stainless Steel
Stainless steel V2A, brushed
Stainless steel V4A (salt-water and grinding dust resistant), brushed
PVD Coated Stainless Steel
Bronze-finish as PVD coating, stainless steel, brushed
Real Burnished Brass
Architectural Bronze
Gold-finish as PVD coating, stainless steel, brushed
Chrome-finish as PVD coating, stainless steel, high-gloss polished
Brass-finish as PVD coating, stainless steel, high-gloss polished
Powder Coated Stainless Steel
General
Front panel
3 mm (0.12 in), stainless steel V4A/V2A
Mounting housing(backbox)
Polycarbonate
Mounting type
Surface-mounted,flush-mounted version sold separately
Call button
Illuminated
Nameplate
Plastic
Power supply
15 V DC (max. 15 W) or Power over Ethernet(PoE 802.3af Mode-A)
Weight
530 g
Connectors
• LAN/PoE (T+, T-, R+, R-)
• Bi-stable latching relay (potential-free),max. 1-24 V DC/AC, 1 A, e.g. for electricdoor opener
• External input for external door opener button
• 15 V DC input (+, -), max. 15 W
Weather-proof
Yes, IP65
Approvals
IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368,IEC/EN 62471, Wi-Fi CERTIFIED™
Dimensions
191,4 x 65 x 34,5 mm (H x W x D)
7.54 x 2.56 x 1.36 in (H x W x D)
Scope of delivery
1x Main Electrical Unit
1x Front panel
1x Surface-mounting housing (backbox)
1x Power supply unit (mains adaptor) with
4 country-specific outlet adaptors
(110 - 240 V AC to 15 V DC)
1x Screwdriver
1x Quickstart guide with Digital Passport
1x Installation manual
1x Small parts
Warranty
Current System Requirements
System requirements
Mobile device: Newest iOS oniPhone/iPad, newest Android onSmartphone/TabletInternet: High-Speed Landline BroadbandInternet connection, DSL, cable or fiber optic,no socks or proxy serverNetwork: Ethernet Network, with DHCP
Recommendedinstallation height
Camera lens should be at a min. height of145 cm (57 in). Before the installation pleasedetermine your optimal installation height.
Optional Accessories
Sold separately
Video
Camera
HDTV 1080p, dynamic (VGA – HDTV)
Lens
High-end ultra wide-angle hemispheric lens200° (D), 150° (H), 90° (V), straightened,IR-capable
Night-vision
Yes, light sensor, automatic IR-cut filter,12 Infrared LEDs (850 nm)
Audio
Audio components
Speaker and microphone, noise reduction andecho cancellation (ANR, AEC)
Audio streaming
Two-way, full duplex
Network
Ethernet
PoE 802.3af Mode-A, 10/100 Base-T
WiFi
2.4 GHz b/g/n
Supported protocols
HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP,TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF(RTP [RFC-2833], SIP INFO [RFC-2976]), STM
Motion Sensor
Type
Active
Detection angle
80° (H), 50° (V)
Range
1 - 6 m (3.3 - 19.7 ft), depends on environment,configurable in 1 m (3.3 ft) steps.
Technology
4D. Based on multiple integrated sensors andalgorithms, e.g. Radio Frequency Energy (RFE)
Configuration
Via App, e.g.• Range (1 - 6 m / 3.3 - 19.7 ft)• Movement direction (coming, leaving, both)• Individual events (e.g. switch a relay,push notification, SIP call [audio/video],HTTP(s) requests)• Individual schedules
Integrated Wireless Modules
WiFi
2.4 GHz
Bluetooth
Bluetooth Low Energy (BLE), enabled withfuture firmware and App update
Sensor
24 GHz, can be disabled
