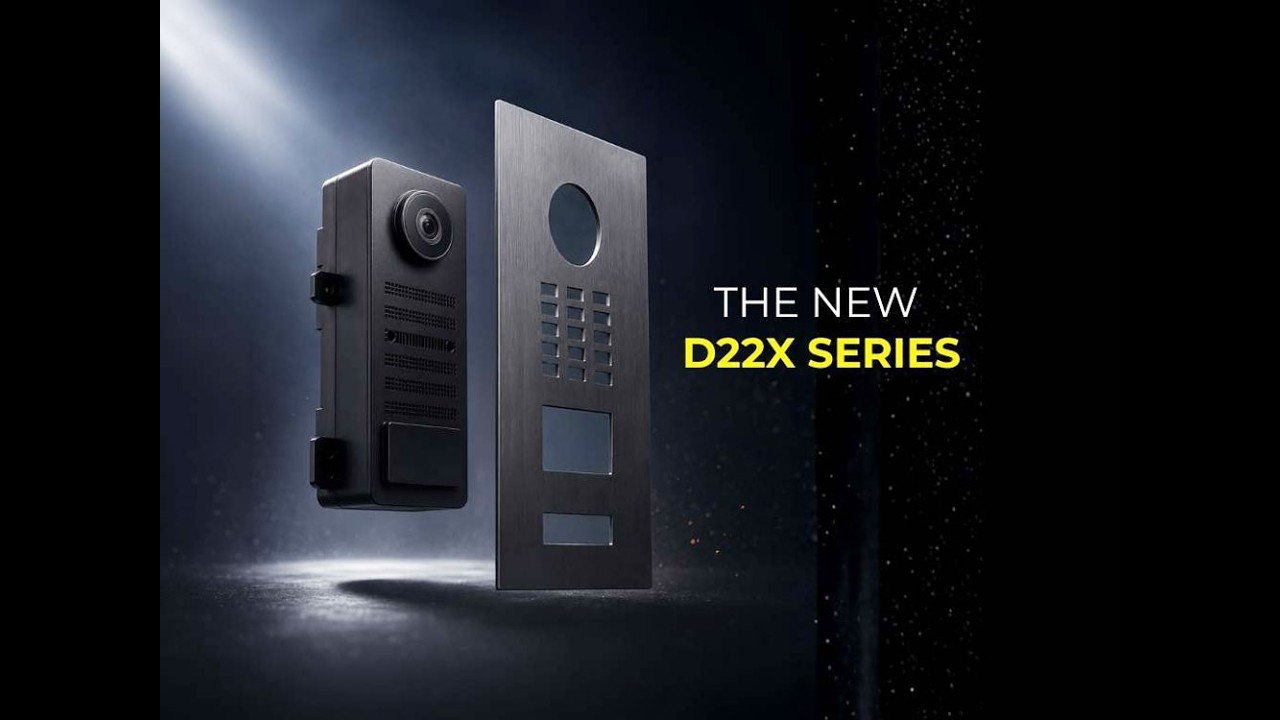

DoorBird D2201KV IP Video Intercom with Keypad

The DoorBird D2201KV IP Video Intercom is the next generation of DoorBird’s premium single-button door station, combining high-resolution video, clear two-way communication and flexible access control in one beautifully finished unit. Designed for prestige homes, gated properties and commercial entrances, the D2201KV allows you to see and speak with visitors from the DoorBird app, compatible indoor stations or supported SIP devices—whether you are inside the property or away from home.

Built in Germany and available in a wide selection of stainless-steel, architectural metal and powder-coated finishes, the D2201KV delivers the quality and understated appearance for which DoorBird’s D21 and D22 Series intercoms are known. Behind the familiar design is a significant technology upgrade, including a new 5-megapixel camera, improved HDR, clearer and louder audio, upgraded RFID performance, Bluetooth access, Wiegand connectivity and configurable inputs.

A major improvement in video quality

The most noticeable upgrade is the new 5MP ultra-wide-angle camera, replacing the 720p camera used in the previous model. The additional resolution produces a much sharper and more detailed image, making it easier to identify visitors, vehicles and activity around the entrance.

Improved High Dynamic Range (HDR) provides better image balance when lighting conditions are less than ideal. This is particularly useful at entrances where a visitor may be standing in shade with bright daylight behind them. Integrated infrared LEDs and automatic night vision maintain visibility after dark, giving you a clear view of the entrance throughout the day and night.

Clearer, louder two-way communication

The D2201KV features upgraded audio performance with improved sound quality and greater speaker volume. Visitors can hear you more clearly at busy entrances, roadside gates and other locations where background noise can make conversation difficult. Built-in echo and noise suppression further improves two-way communication through the DoorBird app or connected indoor station. When a visitor presses the illuminated call button, the intercom can call smartphones and tablets running the free DoorBird app, compatible DoorBird indoor stations and supported SIP phones. You can see who is there, speak with them and release a connected door or gate from wherever you are.

Flexible keypad, RFID and Bluetooth access

The integrated 12-key keypad provides convenient PIN-code access for family members, staff, contractors and regular visitors. Up to 3,000 individual PIN codes can be managed remotely, allowing access permissions and schedules to be changed without visiting the intercom.

The improved dual-frequency RFID reader supports both 125kHz and 13.56MHz credentials, delivering faster and more dependable access for up to 3,000 authorised tags. Bluetooth Low Energy adds another modern access option and supports compatible DoorBird Bluetooth credentials, including the DoorBird Bluetooth Keyfob.

These access methods can be configured individually, making the D2201KV suitable for everything from a family home to an office, warehouse, clinic or secured vehicle entrance.

Built for professional integration

New Wiegand, OSDP and RS485 interfaces make the D2201KV easier to integrate with third-party access-control platforms. Configurable inputs allow installers to connect and monitor compatible external devices or signals, providing greater flexibility when designing a complete gate, door or security solution.

Two freely configurable relays can control doors, pedestrian gates, driveway gates or other connected equipment. Time schedules and event-based actions can also be created, allowing the system to perform functions such as releasing a door during business hours, triggering an external light or sending an HTTP request to another system.

DoorBird’s open API and SIP support provide extensive integration possibilities with smart-home, building-automation, access-control and video-surveillance systems. Supported integration partners include Control4, Crestron, KNX, Loxone, RTI, Home Assistant, Synology, QNAP, Yale, Nuki and many more.

Intelligent monitoring and visitor history

The integrated 4D motion sensor can detect movement at an adjustable distance of up to 10 metres. Motion events can trigger notifications, record visitor activity or activate programmed actions, depending on how the system is configured.

DoorBird provides free visitor image history, while optional Cloud Pro services can add video recording and other enhanced features. This means the D2201KV functions as more than a video doorbell—it becomes an active part of the property’s access-control and entrance-monitoring system.

Reliable PoE network connection

The D2201KV connects to the network using wired Ethernet and can be powered by Power over Ethernet (PoE), carrying power and data over a single network cable. For installations where only existing doorbell wiring is available, a compatible DoorBird two-wire Ethernet PoE converter may provide an alternative connection method.

Key features

• New 5-megapixel ultra-wide-angle camera
• Improved HDR for difficult and backlit conditions
• Infrared night vision with automatic light sensing
• Improved speaker volume and audio clarity
• Echo and ambient-noise suppression
• Video calls to smartphones, tablets, indoor stations and SIP devices
• Integrated 12-key keypad with up to 3,000 PIN codes
• Improved dual-frequency RFID reader with up to 3,000 credentials
• Bluetooth Low Energy access support
• Wiegand, OSDP and RS485 integration
• Configurable inputs for greater installation flexibility
• Two freely configurable switching relays
• 4D motion sensor with adjustable detection up to 10 metres
• Visitor image history and optional Cloud Pro video recording
• Open API and extensive third-party integration
• Wired LAN connection with PoE
• Available in a wide range of premium finishes
• Designed and manufactured in Germany

A smarter upgrade for premium entrances

The DoorBird D2201KV retains the robust construction and architectural styling of the previous model while delivering meaningful improvements where they matter most. The sharper 5MP camera, stronger HDR, improved audio and expanded access-control interfaces make it a substantial upgrade for new installations and existing DoorBird users wanting the latest generation of D22 technology.

The D2201KV is designed for a single residence, business or entrance with one call button. A compatible flush-mount or surface-mount backbox is required and sold separately, allowing the intercom to be specified to suit the installation.
